Walkable flexible solar panel set 240Wp premium – Victron Energy MPPT Charge Controller – 5-Year Warranty

Make your adventures even more comfortable with our premium solar panel set, specially designed for caravans, motorhomes, and boats. This set offers a perfect combination of efficiency and convenience with an impressive 5-year warranty. Thanks to the plug & play installation and step-by-step instructions, the system is easy to connect, even without technical knowledge. The solar panels are walkable and feature 30 cm cables, preventing loose cables on the roof (extension cables can also be supplied if needed). In addition, JaDaStroom always provides technical support if you have any questions.

This set includes

• 2 x JaDaStroom flexible walkable solar panel 120Wp premium
• 1 x MPPT charge controller Victron Energy 100/20 with Bluetooth (manual included)
• 1 x schematic diagram
• 1 x roof cable gland
• 5 meters red cable (from solar panel to charge controller)
• 5 meters black cable (from solar panel to charge controller)
• 2.5 meters red cable (from charge controller to battery)
• 2.5 meters black cable (from charge controller to battery)
• All cables are fitted with connectors
• Always technical support by JaDaStroom

Information about the panel:

• Maximum Power (Pmax) 120Wp
• Open Circuit Voltage (Voc) 23,30V
• Short Circuit Current (Isc) 6,42A
• Maximum Power Voltage (Vmp) 19,8V
• Maximum Power Current (Imp) 6,07A
• Dimensions: 107 * 54 * 0,2cm
• Solar panel cable length: 30cm
• Weight: 2kg
• Panel is flexible
• Monocrystalline
• Solar panel is walkable
• Brand: JaDaStroom

Information about the charge controller

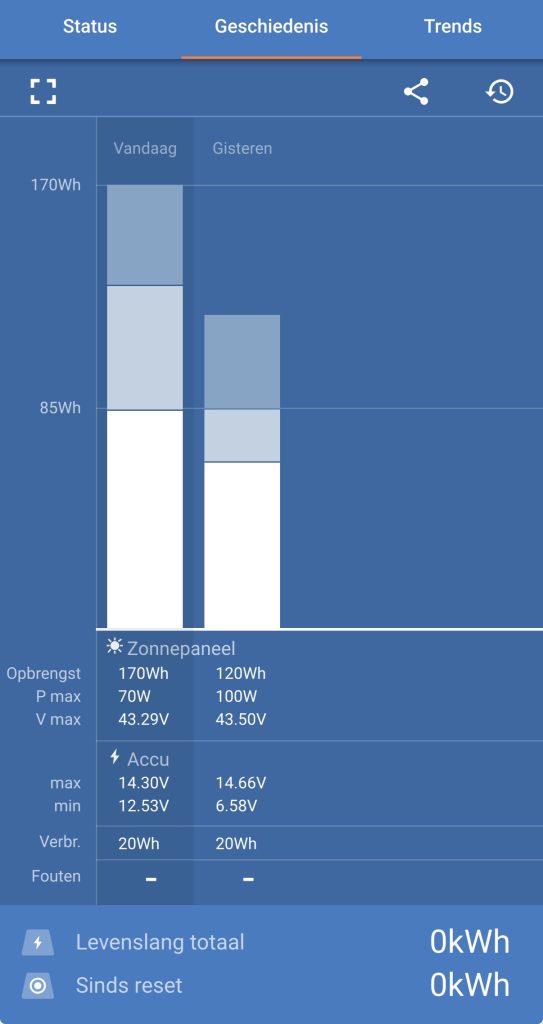

With the MPPT charge controller from Victron Energy, you increase energy output by 30% compared to PWM controllers, and the Victron Energy MPPT controller is also 10% more efficient than slower MPPT controllers. The charge controller comes with a manual, available in Dutch and English. You can also see the solar panel output via the Victron Energy app, called “VictronConnect,” which is easy to download from the App Store and Play Store. In addition, a fuse is built into the charge controller.

Information about the cable

• The cable contains all connectors for the connection. In addition, a fuse is built into the cable.
• Cable from solar panel to charge controller is 4mm².
• Cable from charge controller to battery is 6mm².

Information about the roof cable gland
Provides the ability to bring the cable into the caravan or boat without letting water in.

Good to know

• The panels can be mounted with sealant or via the side mounting points
• Deze set is voor een 12V of 24V systeem

Why choose us?

JaDaStroom offers a complete plug-and-play solar panel set at an attractive price. You can also always reach out to us with questions, both before and after your purchase! We also stand for quality, having deliberately chosen a weatherproof panel. This is also reflected in the Victron Energy charge controller, one of the best brands on the market. Additionally, JaDaStroom provides a 5-year warranty on this solar panel set.

Additional information
The charge controller is suitable for the following batteries: lead-acid, Lithium LiFePO4 with internal BMS, AGM, and GEL batteries.

Never connect 2 different types of panels to one charge controller, meaning panels with different specifications. For safety and efficiency reasons.

The solar panels can become hot. Make sure the surface on which the panels are placed can withstand this. Otherwise, the paint may, for example, bubble.

If you are using sealant for the installation: choose a heat/UV-resistant sealant, for example Sikaflex 252 (also check if the sealant can adhere to your surface).

If you stand on the solar panel, make sure there are no sharp objects on the panel or under your shoe. Do not stand on the solar panel with heels.
